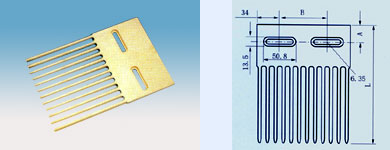

过渡板
|
L |
A |
B |
| Inch
mm |
Inch
mm |
Inch
mm |
| 5.57 146.1 |
1.00 25.4 |
4.00 101.6 |
| 7.50
190.5 |
1.00
25.4 |
3.25
82.6 | |
|
|
 |
网带链链轮
|
齿数 |
外径 |
节圆径 |
轴径 |
|
|
|
圆孔 方孔 |
|
inch mm |
inch mm |
mm mm |
|
9 |
6.460 164 |
6.578
167 |
30，40，50，60，90 |
|
14 |
10.100 257 |
10.111 257 |
30，40，50，60，90 | | |
|
|
 标准网带宽度 （转弯半径=链网宽度×2.3）
|
inch |
3.0 |
6.0 |
9.0 |
12.0 |
15.0 |
18.0 |
21.0 |
24.0 |
27.0 |
30.0 |
33.0 |
36.0 |
39.0 |
|
mm |
76 |
152 |
228 |
305 |
381 |
457 |
533 |
607 |
683 |
762 |
838 |
914 |
990 | |
|
|
 |
网带链链轮规格
|
齿数 |
轴心内径 |
节圆直径 |
齿轮直径 |
齿底直径 |
毂直径 |
|
最小 |
最大 |
|
|
|
|
| |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
|
9 |
19.05 0.75 |
40.0 1.57 |
74.3 2.93 |
73.8 2.91 |
56.8 2.24 |
56.8 2.24 |
|
10 |
19.05
0.75 |
40.0
1.57 |
82.2 3.24 |
82.2 3.24 |
65.2 2.57 |
65.2
2.57 |
|
12 |
19.05 0.75 |
40.0 1.57 |
98.1 3.86 |
98.8 3.89 |
81.8 3.22 |
70.0 2.76 |
|
15 |
19.05
0.75 |
63.5
2.50 |
122.2
4.81 |
123.5
4.86 |
106.5
4.19 |
70.0
2.76 |
|
18 |
19.05 0.75 |
60.0 2.36 |
146.3 5.76 |
144.5 5.69 |
127.5 5.02 |
70.0 2.76 |
|
19 |
19.05
0.75 |
60.0
2.36 |
154.3
6.08 |
156.2
6.15 |
139.2
5.48 |
70.0
2.76 |
|
28 |
19.05 0.75 |
60.0 2.36 |
226.8 8.93 |
229.4 9.03 |
212.4 8.36 |
70.0
2.76 | | |
